DPF Machines
What is a DPF Clean?
Blocked DPFs can be very expensive to replace, however our range of DPF cleaning machines can clean upto 100% of the carbon, soot and ash build-up. You'll be able to clean DPFs in your workshop within a matter of hours, instead of sending them away to specialists who will generate the most profits for this service.
Our DPF Cleaning Range

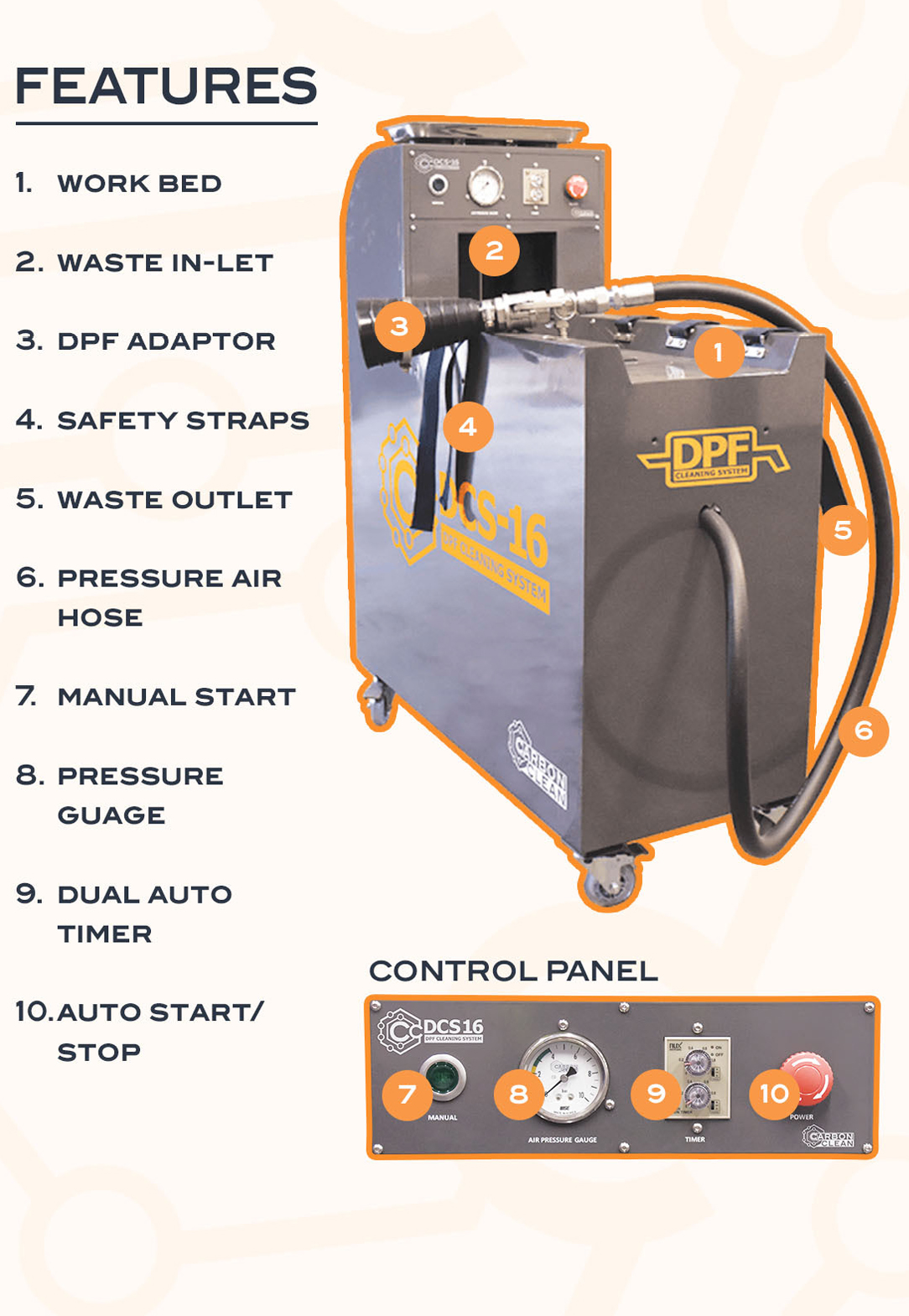

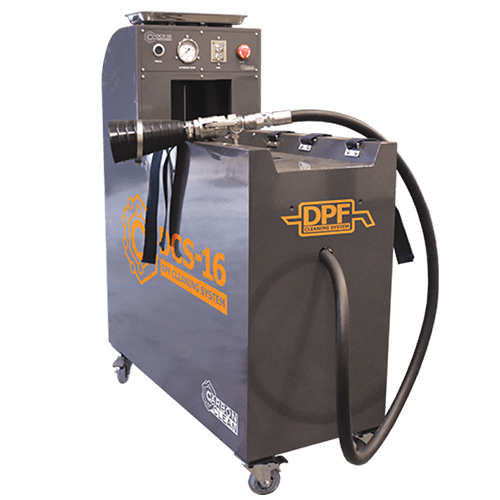

DCS-16 DPF Cleaning Machine
Designed to accomodate most domestic car DPFs, to perform a complete filter regeneration.
PRICE: From $37 per week
+TAX Based on Finance Approval, Terms apply
Benefits
Can remove upto 100% of soot/ ash in DPF
Automatic set and forget function
Equipped with all accesories to suit any car DPF
Simple control panel
Good value for money
Compact design and mobile
Technical Parameters
| Description | DPF Cleaning System |
| Model No. | DCS-16 |
| Driving System | AIR: 2-6 BAR Compressor |
| Cleaning Agent | Chemical / Water / Air |
| Operation | Timer Relay Solenoid Valve |
| Display Mode | Analogue |
| Air Receiver Tank | 15L |
| Dimensions | 400(W) x 900(L) x 1120(H)(mm) |
| Net Weight | 60 kg |
| Power Supply | 200V/ 50HZ/ 13A |
| Applications | Cars |

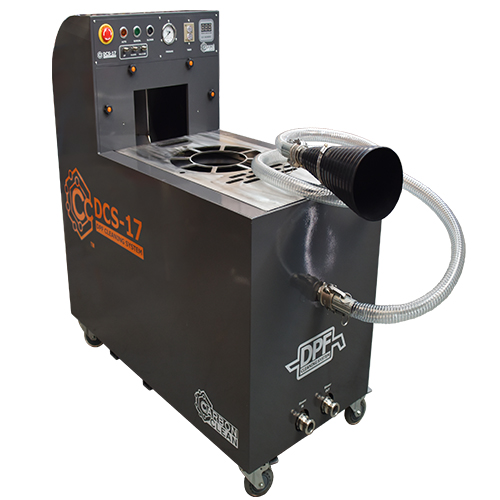

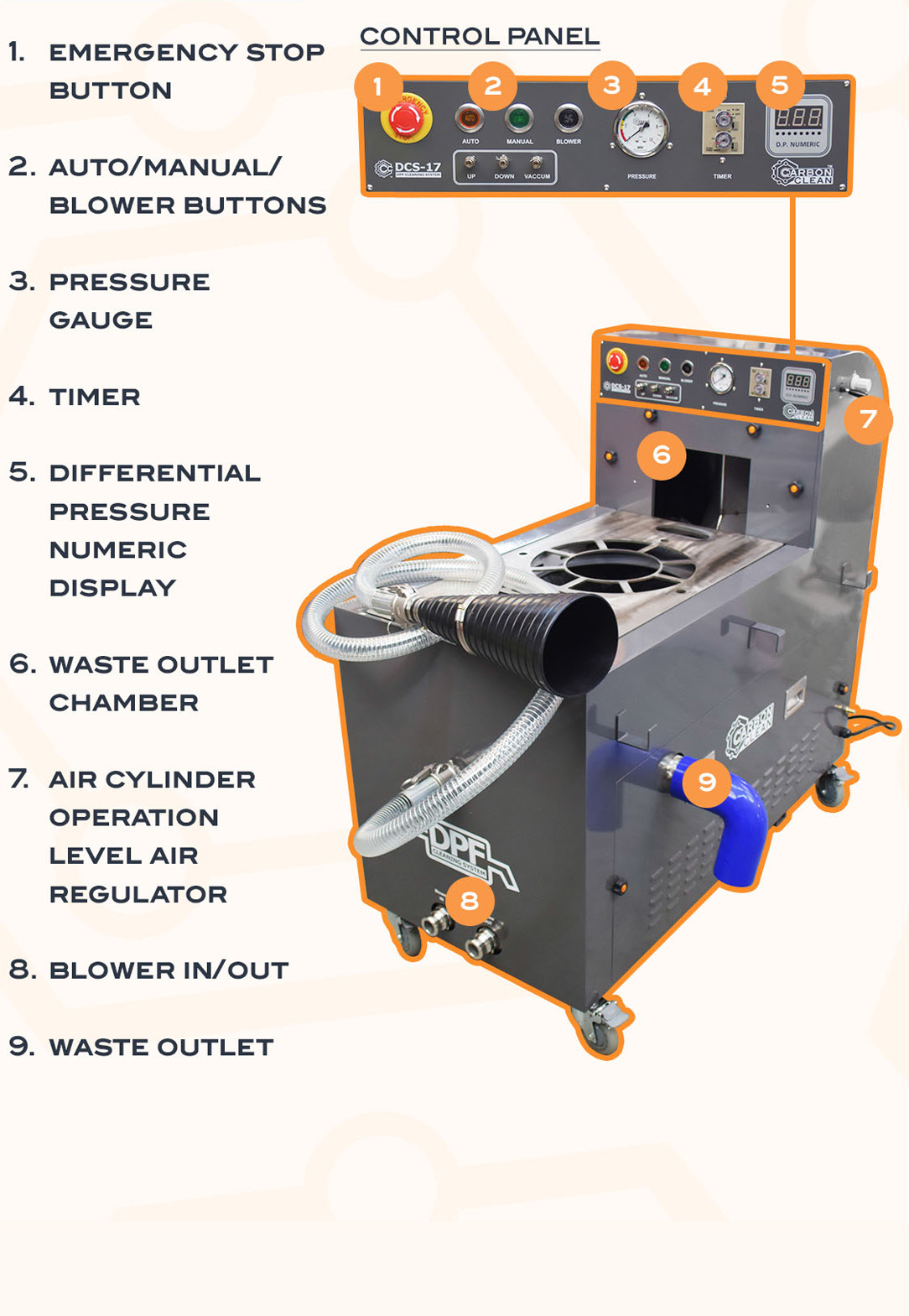

DCS-17 DPF Cleaning Machine
This machine is suitable for light commercial vehicles equipped with a range of accessories to tackle most DPFs in the car park.
PRICE: From $61 per week
+TAX Based on Finance Approval, Terms apply
Benefits
- Easy work-bed design
- Can handle Euro 5 and 6 engines
- In situ clean and dry function
- Multi-direction DPF positions, to clean deeper
- Pressure Display
- Can remove upto 100% of soot/ ash in DPF
- Automatic set and forget function
Technical Parameters
| Description | DPF Cleaning System |
| Model No. | DCS-17 |
| Driving System | AIR: 2-6 BAR Compressor |
| Cleaning Agent | Chemical / Water / Air |
| Operation | Timer Relay Solenoid Valve |
| Display Mode | Analogue/ Digital |
| Air Receiver Tank | 30L |
| Dimensions | 1250(W) x 600(L) x 1120(H)(mm) |
| Net Weight | 160 kg |
| Power Supply | 200V/ 50HZ/ 16A |
| Applications | Cars, Light Commercial Vehicles |

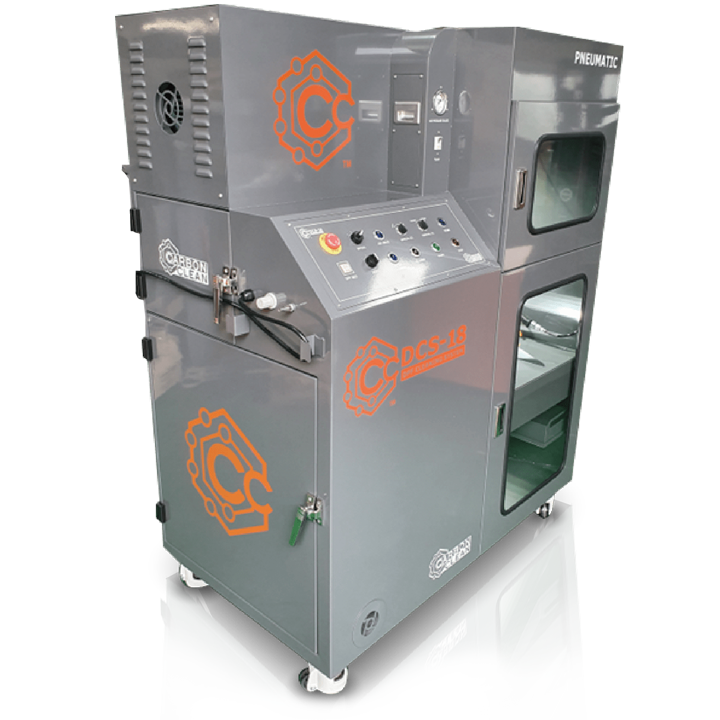

DCS-18 DPF Cleaning Machine
This is our DPF cleaning machine to specifically offer pneumatic cleaning for Euro 6 DPFs. This new feature only uses air from a high pressure nozzle that is applied to each element of the DPF allowing a detailed clean. This means there is no additional liquid costs and the enclosed cabinet design creates a convenient servicing process.
PRICE: from $147 per week
+VAT Based on Finance Approval, Terms apply
Benefits
- Specialised machine for Euro 6 DPFs
- Precision Cleaning with adjustable air-needle positioning
- Cabinet design for easy operation and servicing
- Only uses constant air pressure
- Can remove upto 100% of soot/ ash in DPF
- Automatic set and forget function
Technical Parameters
| Description | Commercial DPF Cleaning System |
| Model No. | DCS-18 |
| Driving System | AIR: 2-10 BAR |
| Cleaning Agent | Air Pressure |
| Operation | Timer Relay Solenoid Valve |
| Display Mode | Analogue |
| Air Receiver Tank | Direct to Air Compressor |
| Dimensions | 800(W) x 1440(L) x 1795(H)(MM) |
| Net Weight | 355 kg |
| Power Supply | 220V / 60HZ / 30A |
| Vehicle Type | Euro 6 Commercials, Agricultural Engines Only |

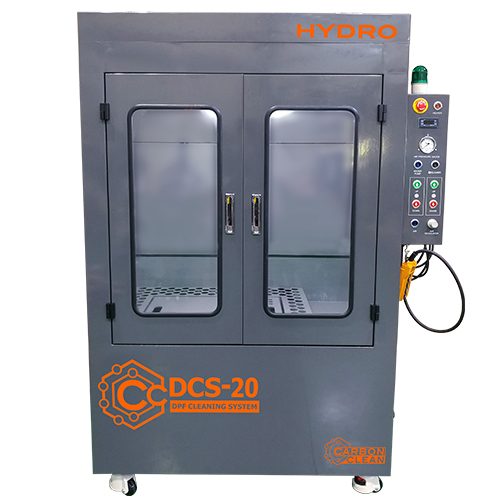

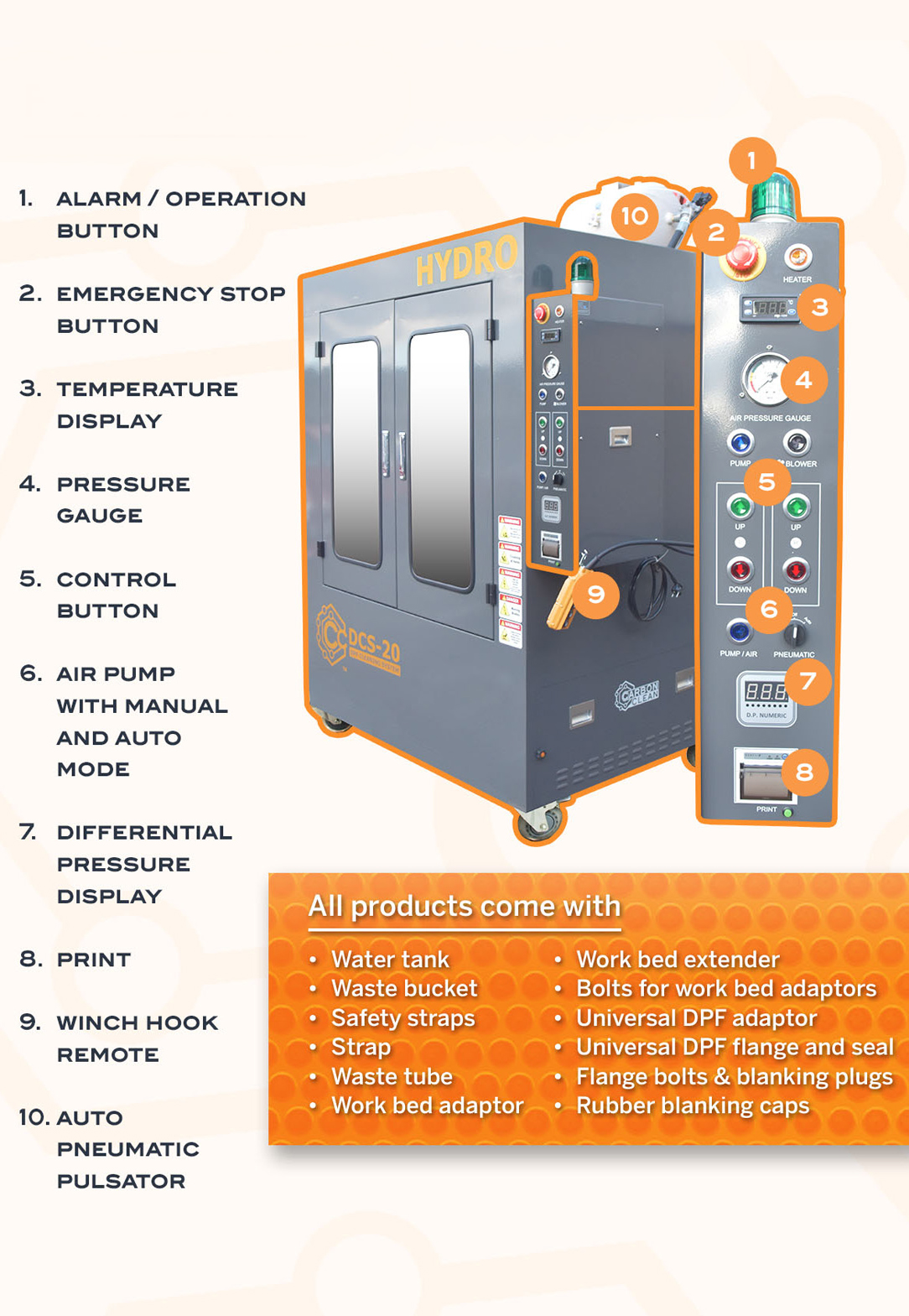

DCS-20 DPF Cleaning Machine
A heavy duty commercial DPF machine, equipped to efficiently handle any domestic or commercial DPF ranging to even boats and motorbikes, with some notable added features.
PRICE: From $234 per week
+TAX Based on Finance Approval, Terms apply
Benefits
- Top of the range machine
- Cabinet style design
- Adjustable Pressures
- Printer system to show pre-service/ post service results
- Active Filteration
- Adjustable water temperature for better results
- Can remove upto 100% of soot/ ash in DPF
- Automatic set and forget function
Technical Parameters
| Description | Commercial DPF Cleaner |
| Model No. | DCS-20 |
| Driving System | AIR: 2-10 BAR |
| Cleaning Agent | Chemical / Water / Air |
| Operation | Timer Relay Solenoid Valve |
| Display Mode | Analogue/ Digital |
| Air Receiver Tank | 30L |
| Dimensions | 1475(W) x 900(L) x 2050(H)(mm) |
| Internal Cabinet Dimensions | 860(W) x 1300(L) x 1080(H)(mm) |
| Net Weight | 470 kg |
| Power Supply | 220V/ 60HZ/ 32A |
| Applications | Cars, Boats, All Commercial Vehicles, Agricultural Engines |
